- Features: simple and convenient installation, natural ventilation and heat dissipation of cables, reducing energy consumption and saving energy; Maintenance and upgrade are also very easy.
- Material: carbon steel (Q235B), stainless steel (304, 316, 316L).
- Surface treatment: the surface treatment of carbon steel is divided into EZ (EZ) (indoor), HDG (GC) (outdoor) and PC (DC). The surface treatment of stainless steel is acid washing and polishing.

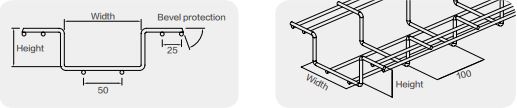

50mm Height T - Wire Tray Straight Section
| Wire Dia mm |
Height mm |
Width mm |
Length mm |
Weight kg |
EZ |
HDG |
PC |
304 |
316L |
| 4 |
50 |
100 |
3000 |
2.7 |
ID-BS24221 |
ID-BS24222 |
ID-BS24223 |
ID-BS24224 |
ID-BS24225 |
| 4 |
50 |
150 |
3000 |
3.2 |
ID-BS24231 |
ID-BS24232 |
ID-BS24233 |
ID-BS24234 |
ID-BS24235 |
| 4 |
50 |
200 |
3000 |
3.6 |
ID-BS24241 |
ID-BS24242 |
ID-BS24243 |
ID-BS24244 |
ID-BS24245 |
| 4 |
50 |
300 |
3000 |
4.5 |
ID-BS24251 |
ID-BS24252 |
ID-BS24253 |
ID-BS24254 |
ID-BS24255 |
| 5 |
50 |
100 |
3000 |
4.2 |
ID-BS25221 |
ID-BS25222 |
ID-BS25223 |
ID-BS25224 |
ID-BS25225 |
| 5 |
50 |
150 |
3000 |
5.0 |
ID-BS25231 |
ID-BS25232 |
ID-BS25233 |
ID-BS25234 |
ID-BS25235 |
| 5 |
50 |
200 |
3000 |
5.7 |
ID-BS25241 |
ID-BS25242 |
ID-BS25243 |
ID-BS25244 |
ID-BS25245 |
| 5 |
50 |
300 |
3000 |
7.1 |
ID-BS25251 |
ID-BS25252 |
ID-BS25253 |
ID-BS25254 |
ID-BS25255 |
| 6 |
50 |
100 |
3000 |
6.1 |
ID-BS26221 |
ID-BS26222 |
ID-BS26223 |
ID-BS26224 |
ID-BS26225 |
| 6 |
50 |
150 |
3000 |
7.2 |
ID-BS26231 |
ID-BS26232 |
ID-BS26233 |
ID-BS26234 |
ID-BS26235 |
| 6 |
50 |
200 |
3000 |
8.2 |
ID-BS26241 |
ID-BS26242 |
ID-BS26243 |
ID-BS26244 |
ID-BS26245 |
| 6 |
50 |
300 |
3000 |
10.3 |
ID-BS26251 |
ID-BS26252 |
ID-BS26253 |
ID-BS26254 |
ID-BS26255 |
100mm Height T - Wire Tray Straight Section
| Wire Dia mm |
Height mm |
Width mm |
Length mm |
Weight kg |
EZ |
HDG |
PC |
304 |
316L |
| 4 |
100 |
100 |
3000 |
3.09 |
ID-BS24321 |
ID-BS24322 |
ID-BS24323 |
ID-BS24324 |
ID-BS24325 |
| 4 |
100 |
150 |
3000 |
3.55 |
ID-BS24331 |
ID-BS24332 |
ID-BS24333 |
ID-BS24334 |
ID-BS24335 |
| 4 |
100 |
200 |
3000 |
3.99 |
ID-BS24341 |
ID-BS24342 |
ID-BS24343 |
ID-BS24344 |
ID-BS24345 |
| 4 |
100 |
300 |
3000 |
4.92 |
ID-BS24351 |
ID-BS24352 |
ID-BS24353 |
ID-BS24354 |
ID-BS24355 |
| 5 |
100 |
100 |
3000 |
4.83 |
ID-BS25321 |
ID-BS25322 |
ID-BS25323 |
ID-BS25324 |
ID-BS25325 |
| 5 |
100 |
150 |
3000 |
5.55 |
ID-BS25331 |
ID-BS25332 |
ID-BS25333 |
ID-BS25334 |
ID-BS25335 |
| 5 |
100 |
200 |
3000 |
6.24 |
ID-BS25341 |
ID-BS25342 |
ID-BS25343 |
ID-BS25344 |
ID-BS25345 |
| 5 |
100 |
300 |
3000 |
7.68 |
ID-BS25351 |
ID-BS25352 |
ID-BS25353 |
ID-BS25354 |
ID-BS25355 |
| 6 |
100 |
100 |
3000 |
6.96 |
ID-BS26321 |
ID-BS26322 |
ID-BS26323 |
ID-BS26324 |
ID-BS26325 |
| 6 |
100 |
150 |
3000 |
7.99 |
ID-BS26331 |
ID-BS26332 |
ID-BS26333 |
ID-BS26334 |
ID-BS26335 |
| 6 |
100 |
200 |
3000 |
8.99 |
ID-BS26341 |
ID-BS26342 |
ID-BS26343 |
ID-BS26344 |
ID-BS26345 |
| 6 |
100 |
300 |
3000 |
11.06 |
ID-BS26351 |
ID-BS26352 |
ID-BS26353 |
ID-BS26354 |
ID-BS26355 |
|
