- Features: simple and convenient installation, natural ventilation and heat dissipation of cables, reducing energy consumption and saving energy; Maintenance and upgrade are also very easy.
- Material: carbon steel (Q235B), stainless steel (304, 316, 316L).
- Surface treatment: the surface treatment of carbon steel is divided into EZ (EZ) (indoor), HDG (GC) (outdoor) and PC (DC). The surface treatment of stainless steel is acid washing and polishing.

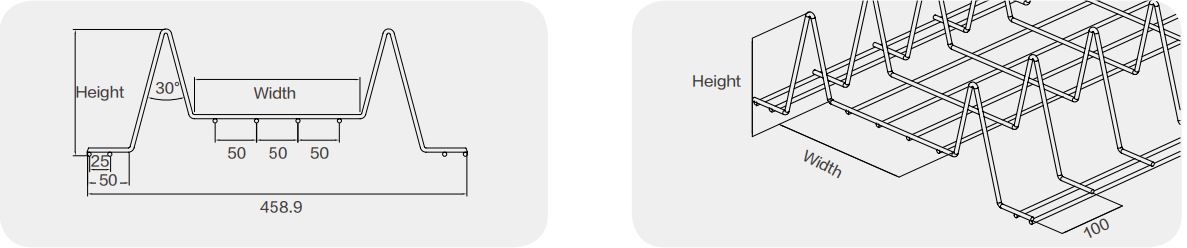

Wire Dia4mm M - Wire Tray Straight Section
| Wire Dia mm |
Height mm |
Height inch |
Width mm |
Width inch |
Length mm |
Length inch |
Weight lb |
Weight kg |
EZ |
HDG |
PC |
304 |
316L |
| 4 |
100 |
4 |
100 |
4 |
500 |
20 |
1.54 |
0.7 |
ID-BS44321 |
ID-BS44322 |
ID-BS44323 |
ID-BS44324 |
ID-BS44325 |
| 4 |
100 |
4 |
150 |
6 |
500 |
20 |
1.7 |
0.77 |
ID-BS44331 |
ID-BS44332 |
ID-BS44333 |
ID-BS44334 |
ID-BS44335 |
| 4 |
100 |
4 |
200 |
8 |
500 |
20 |
1.80 |
0.82 |
ID-BS44341 |
ID-BS44342 |
ID-BS44343 |
ID-BS44344 |
ID-BS44345 |
| 4 |
100 |
4 |
300 |
12 |
500 |
20 |
2.20 |
1.00 |
ID-BS44351 |
ID-BS44352 |
ID-BS44353 |
ID-BS44354 |
ID-BS44355 |
Wire Dia5mm M - Wire Tray Straight Section
| Wire Dia mm |
Height mm |
Height inch |
Width mm |
Width inch |
Length mm |
Length inch |
Weight lb |
Weight kg |
EZ |
HDG |
PC |
304 |
316L |
| 5 |
100 |
4 |
100 |
4 |
500 |
20 |
2.38 |
1.08 |
ID-BS45321 |
ID-BS45322 |
ID-BS45323 |
ID-BS45324 |
ID-BS45325 |
| 5 |
100 |
4 |
150 |
6 |
500 |
20 |
2.69 |
1.22 |
ID-BS45331 |
ID-BS45332 |
ID-BS45333 |
ID-BS45334 |
ID-BS45335 |
| 5 |
100 |
4 |
200 |
8 |
500 |
20 |
2.82 |
1.28 |
ID-BS45341 |
ID-BS45342 |
ID-BS45343 |
ID-BS45344 |
ID-BS45345 |
| 5 |
100 |
4 |
300 |
12 |
500 |
20 |
3.44 |
1.56 |
ID-BS45351 |
ID-BS45352 |
ID-BS45353 |
ID-BS45354 |
ID-BS45355 |
Wire Dia6mm M - Wire Tray Straight Section
| Wire Dia mm |
Height mm |
Height inch |
Width mm |
Width inch |
Length mm |
Length inch |
Weight lb |
Weight kg |
EZ |
HDG |
PC |
304 |
316L |
| 6 |
100 |
4 |
100 |
4 |
500 |
20 |
3.44 |
1.56 |
ID-BS46321 |
ID-BS46322 |
ID-BS46323 |
ID-BS46324 |
ID-BS46325 |
| 6 |
100 |
4 |
150 |
6 |
500 |
20 |
3.83 |
1.74 |
ID-BS46331 |
ID-BS46332 |
ID-BS46333 |
ID-BS46334 |
ID-BS46335 |
| 6 |
100 |
4 |
200 |
8 |
500 |
20 |
4.06 |
1.84 |
ID-BS46341 |
ID-BS46342 |
ID-BS46343 |
ID-BS46344 |
ID-BS46345 |
| 6 |
100 |
4 |
300 |
12 |
500 |
20 |
4.96 |
2.25 |
ID-BS46351 |
ID-BS46352 |
ID-BS46353 |
ID-BS46354 |
ID-BS46355 |
|
